| Anti-Tracking Sealing Mastic |
 |
| Features: |
Excellent sealing and waterproof properties
Anti-tracking
Anti-aging
Excellent self-sticking
Operating temperature: -40℃ to 90℃
Standard color: Red ( other colours are available on requested )
|
|
|
| Application: |

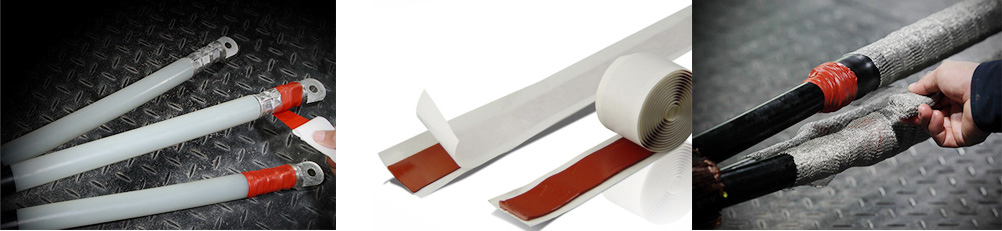

Anti-tracking sealing mastic provide sealing and anti-tracking for power cable termination and joints for heat shrink and cold shrink technology up to 36KV.
Anti-tracking sealing mastic also used to bonding and sealing for connectors of electrical equipment and heat shrinkable mould parts.
|
|
|
| Technical Data: |
| Property |
Test Method |
Typical Date |
| Tensile Strength |
ASTM D 2671 |
≥0.1MPa |
| Elongation at break |
ASTM D 2671 |
≥1000% |
| Dielectric strength |
IEC 243 |
≥15KV/mm |
| Dielectric constant |
IEC 250 |
2~3 |
| Volume resistance |
IEC 93 |
≥1.0x1014Ω.cm |
| Adhesive to steel |
DIN 30672 |
1.0N/mm |
|
|
|
| Dimensions: |
| Item code |
Thickness (mm) |
Width (mm) |
Length (mm) |
Standard Packing |
| MT003 |
2 |
30 |
360 |
5pcs/bag; 125bags/carton |
| MT003 |
2 |
30 |
500 |
3pcs/bag; 80bags/carton |
| MT003 |
1 |
25 |
420 |
1pcs/bag; 250bags/carton |
| MT003 |
2 |
30 |
150 |
1pc/bag; 600bags/carton |
| MT003 |
2 |
25 |
300 |
6pcs/bag; 100bags/carton |
| * Other sizes and packing are available on requested. |
|
|
Related information:
The product is supplied as stripes or rolls of specified dimensions with release paper on both sides. Recommend to store in the original packing, protected from moisture, dust, heat and sunlight.
|
|
|
